PET 사양 Parameter SimPET-S SimPET-X 검출기 링 직경(mm) 63 63 섬광체 LSO LSO 섬광체 크기 (mm3) 1.2 x 1.2 x 10 1.2 x 1.2 x 10 섬광체 링 수 36 36 섬광체/링 수 160 320 섬광체 수 5,760 11,520 종축시야 (mm) 55 110 내부 지름 (mm) 60 60

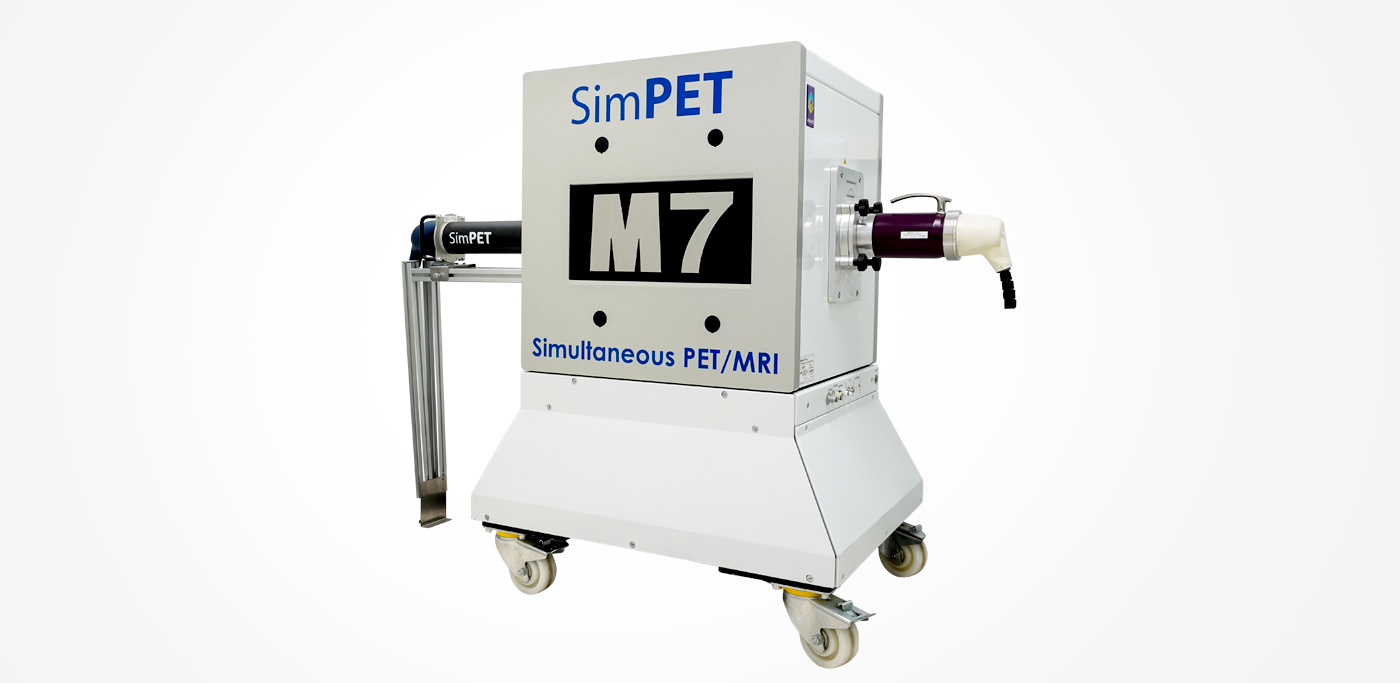

MRI 사양 Parameter M3 M5 M7 크기 (HxWxD, mm) 1,080 x 734 x 734 1,133 x 800 x 800 1,320 x 790 x 950 무게 (Kg) 650 950 1,550 내부 지름 (HxW, mm) 50 x 130 76 x 200 220 x 90 이미지 크기 (mm3) 80 x 80 x 35 90 x 90 x 60 120 x 120 x 70 경사자장 세기 440 (X,Y), 540 (Z) mT/m 430 (X, Y, Z) mT/m 150 (X, Y, Z) mT/m PET/MRI 순차 촬영 순차 촬영 동시 촬영

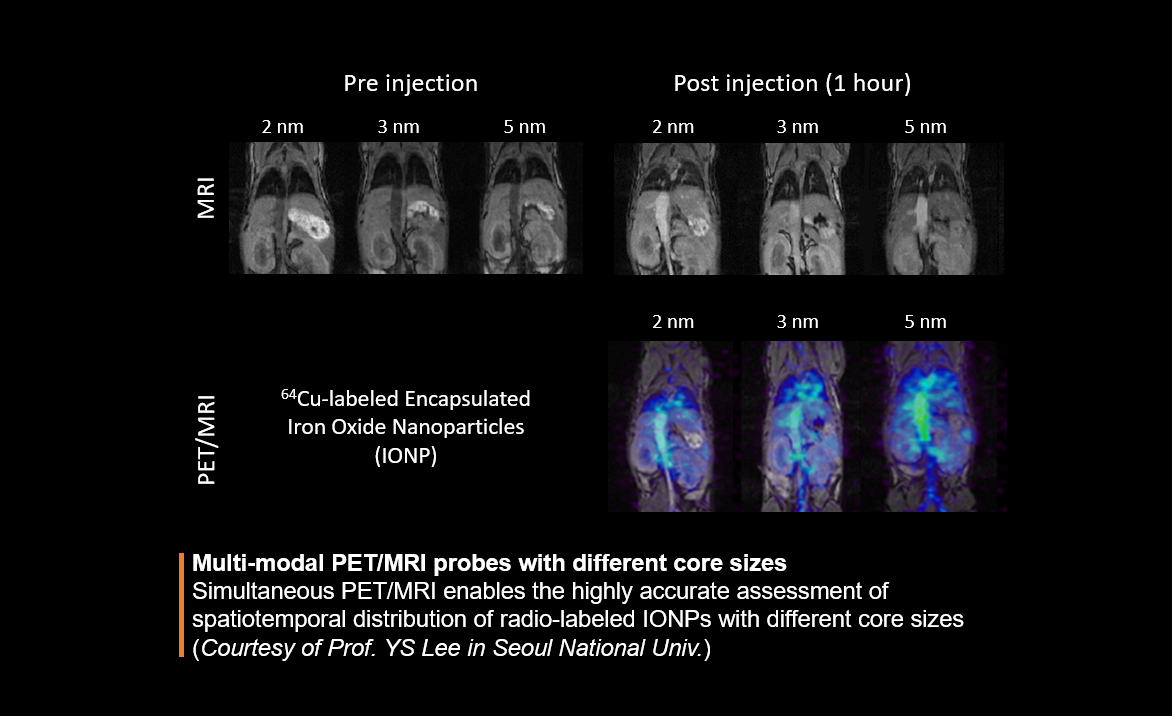

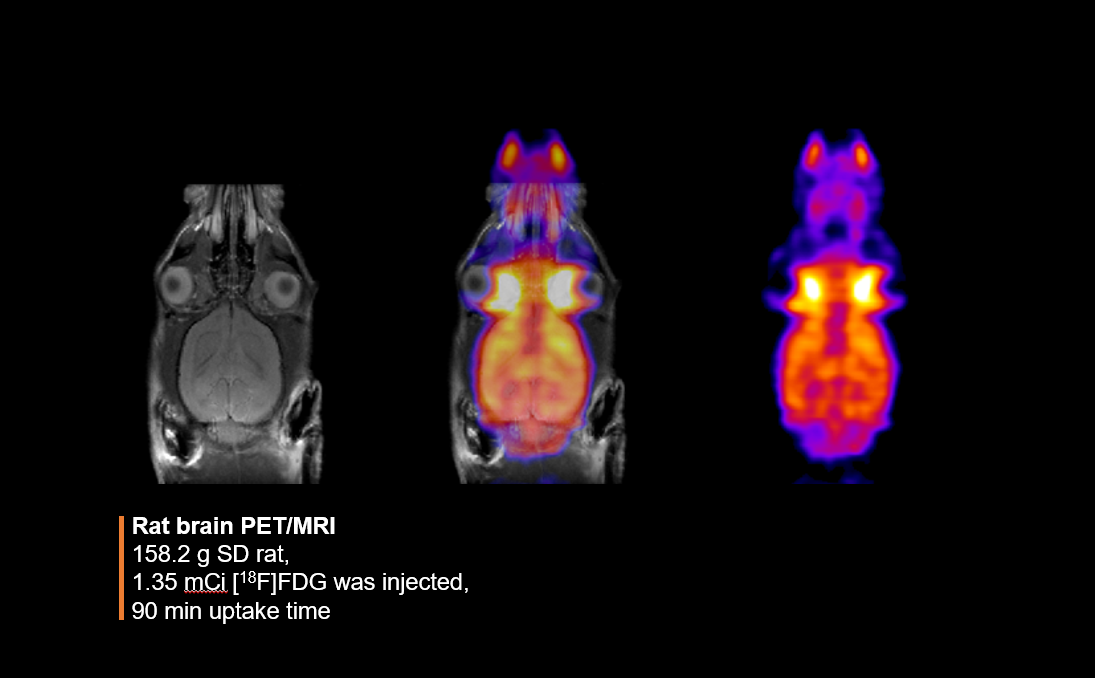

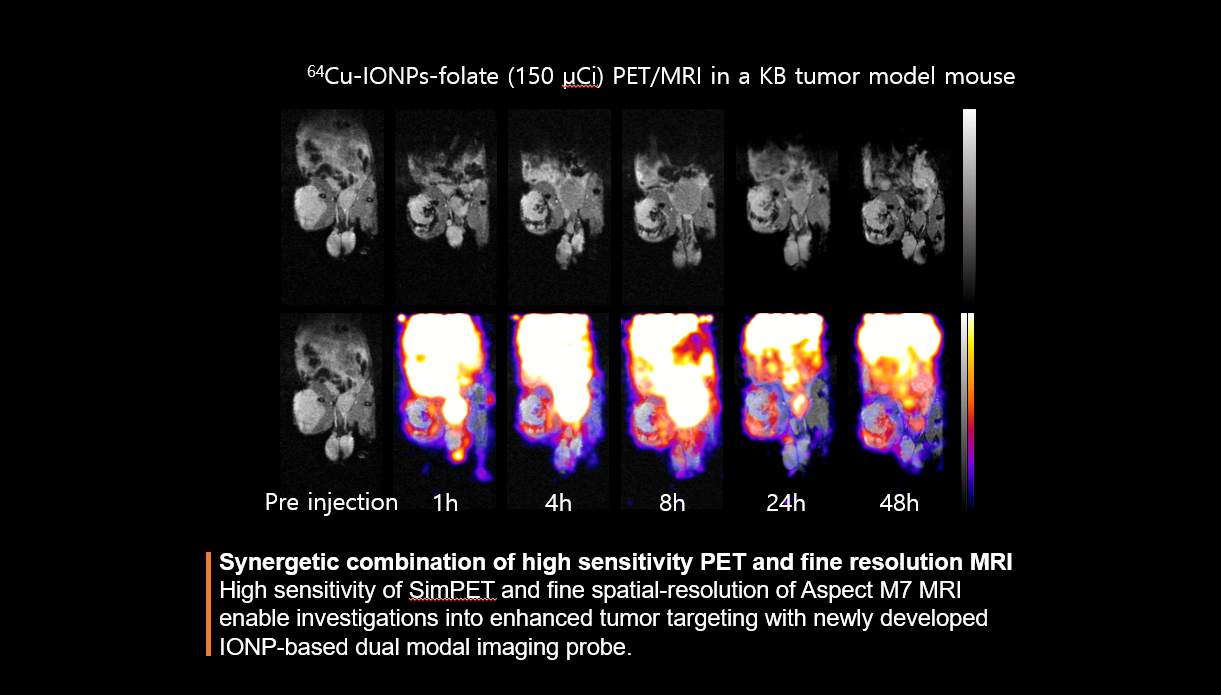

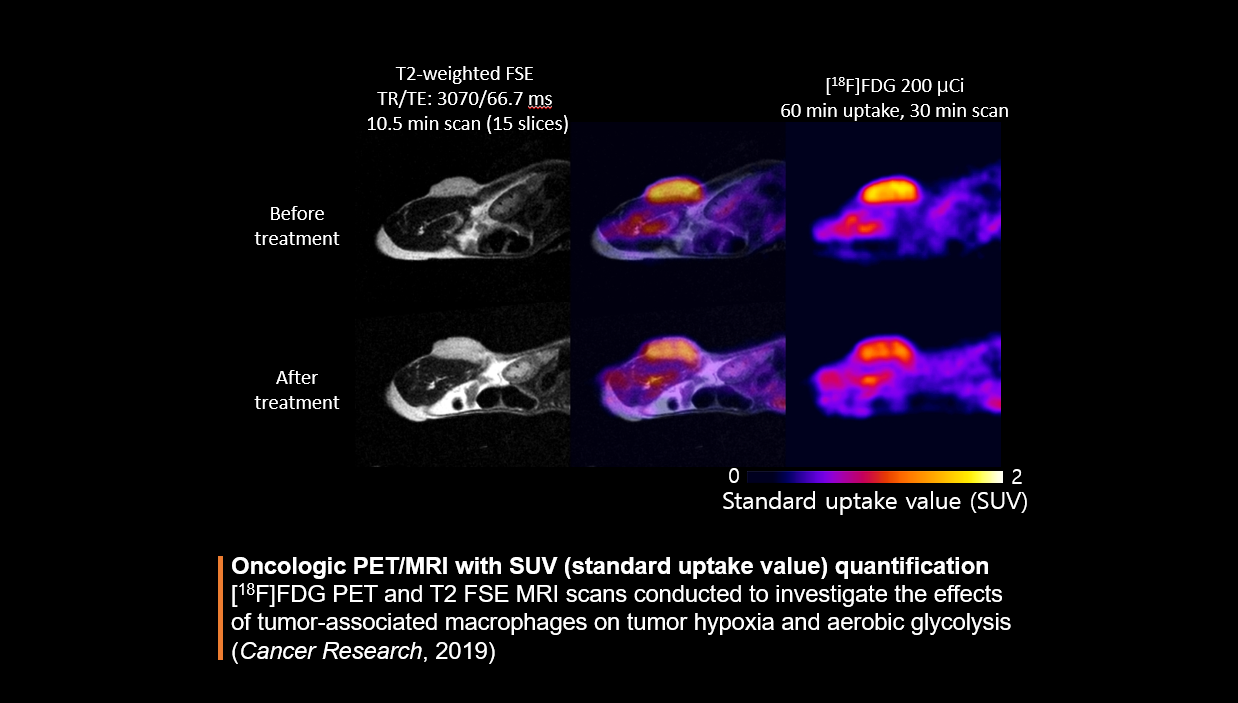

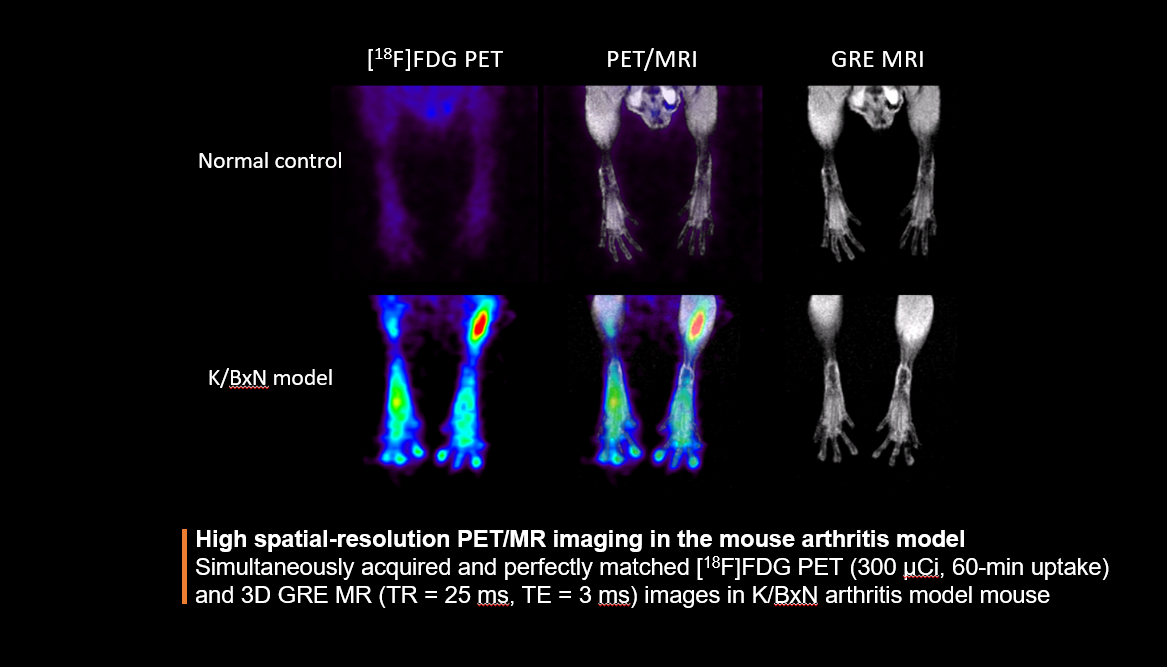

High spatial-resolution PET/MR imaging in the mouse arthritis model Synergetic combination of high sensitivity PET and fine resolution MRI Multi-modal PET/MRI probes with different core sizes Oncologic PET/MRI with SUV (standard uptake value) quantification Rat brain PET/MRI Rat brain PET/MRI
